90-881033R2 – Mercury Outboard Rigging Technicians Guide (2001)

The 90-881033R2 Mercury Outboard Rigging Technicians Guide (3rd Edition, 2001) is the official manual for rigging and installation of Mercury outboards. Unlike standard repair manuals, this guide focuses on mounting, alignment, and system setup. It gives technicians the exact steps needed to install Mercury engines correctly.

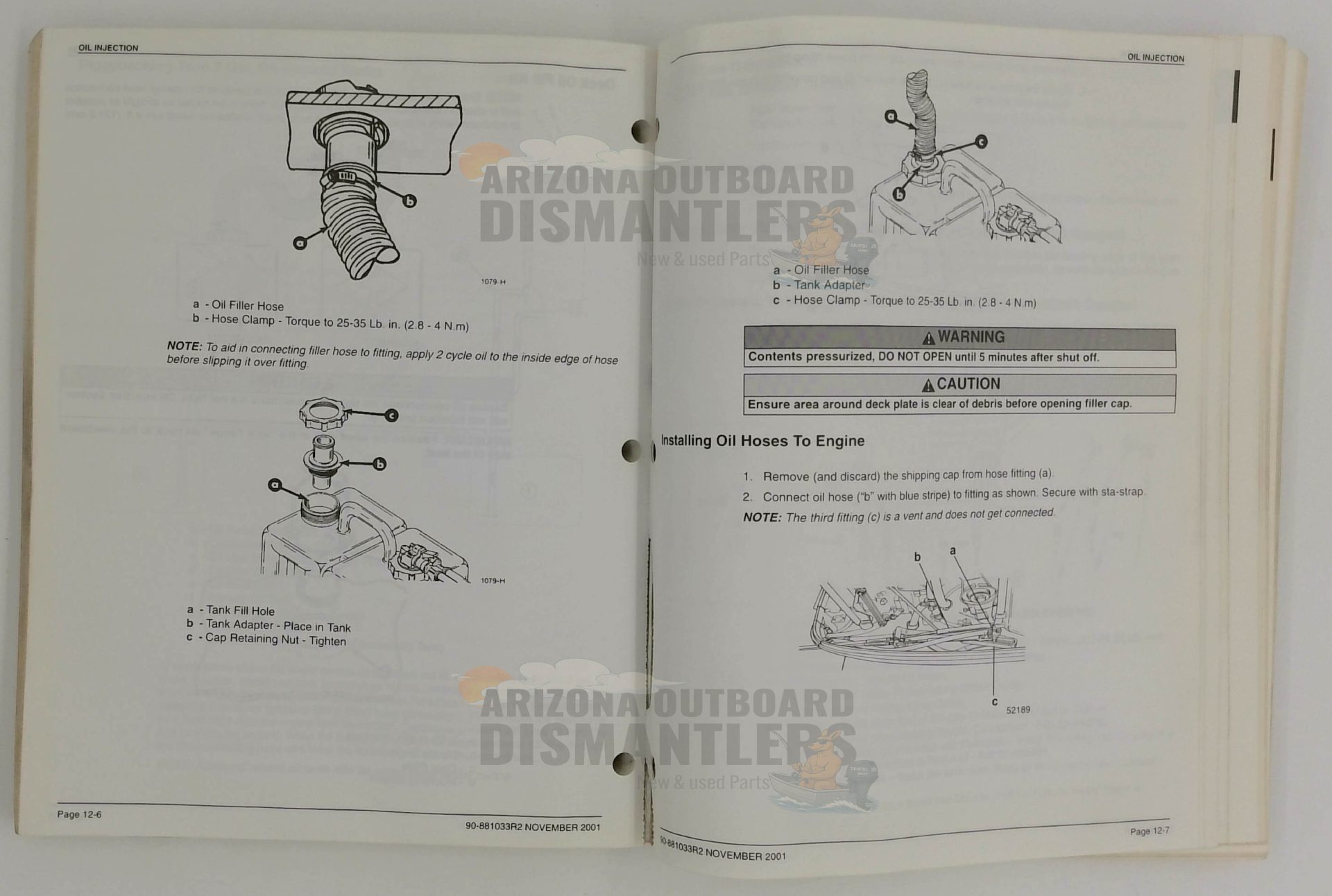

This guide explains how to mount outboards, align steering systems, and connect throttle and shift cables. It also covers fuel line routing, battery wiring, and oil injection installation. Each process includes clear diagrams, torque specifications, and detailed notes to ensure accuracy. As a result, technicians can perform rigging faster and with greater confidence.

In addition, the manual provides safety guidance and step-by-step procedures. By following these methods, installers reduce mistakes, prevent damage, and improve long-term reliability. Transitioning from rigging basics to advanced procedures, the guide ensures even complex setups remain straightforward.

Published in November 2001, the Mercury Outboard Rigging Guide (90-881033R2) is the 3rd Edition. This updated version includes revised instructions for early 2000s models, reflecting Mercury’s factory standards. With consistent steps, diagrams, and torque specs, technicians gain a dependable reference for every installation.

Key Features:

• Part Number: 90-881033R2

• Edition: 3rd Edition, November 2001

• Purpose: Rigging and installation for Mercury outboards

• Covers: Mounting, cabling, steering, wiring, fuel, and oil systems

• Includes: Torque specs, wiring diagrams, and rigging schematics

• Designed for: Professional technicians and marine workshops

• Official Mercury Marine publication

At Arizona Outboard Dismantlers, we provide genuine rigging guides and manuals to help installers achieve perfect results. The 90-881033R2 Rigging Guide is a must-have for marine professionals and anyone responsible for safe Mercury outboard setup.
